My First PCB, WOOT!

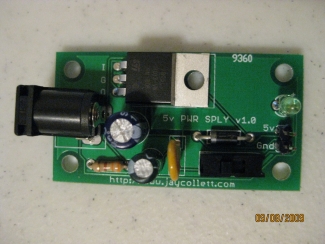

My First PCBThis past week I received my first order from BatchPCB.com! I had built a 5V regulated 5v power supply. I figured I'd start small and simple to ensure I understood the pincipals of PCB layout and what the fab houses expected. I can say that without a doubt the information I found online from the community and the guys over at SparkFun.com helped tremendously. I have (4) new PCBs and none of them have any issues. I've only assembled one so far, it only took me a few minutes to assemble them and I think I actually did a jig when I plugged it up and it worked exactly as I expected! I've since built numerous boards and will be placing an order next week to get them manufactured as well. Very excited stuff to see your ideas developed with such a professional appearance.

  My First PCB
